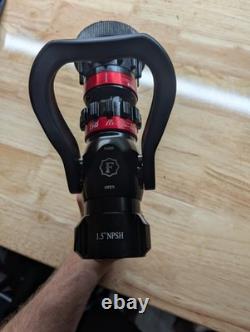

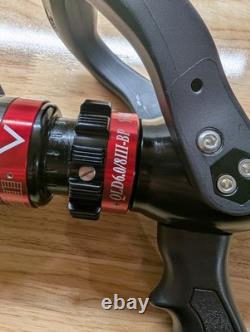

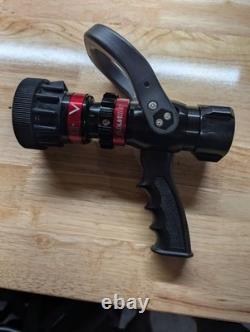

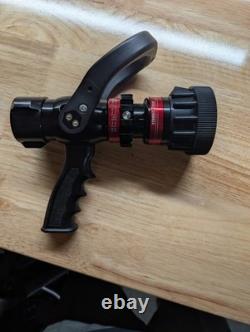

Fire Spray Nozzle qld6.0/8iii bp



Maximum operating pressure 580 PSI or 40 bar. At pressures below 100 PSI or 7 Bar, the nozzle will have reduced flow and reach. Be sure to have enough flow and pressure for the fighting condition.

Open and close shut-off valve slowly. Sudden opening or closing can cause water hammer.

Not for use on electrical fire. Do not over tighten the nozzle onto the hose connection. Do not alter the nozzle in any manner. For use with water and fire fighting foam only. Open and close the shutoff slowly.

To Open: Pull the handle toward the inlet. To Close: Push the handle toward the outlet. To change the spray pattern: rotate the bumper. Rotate it clockwise for straight stream and counterclockwise for wide fog.

To change the flow setting: slowly rotate the index flow control ring to the required setting and adjust your fire engine to provide 100 PSI at the inlet of the nozzle. To flush the nozzle, rotate the index flow control ring lo the FLUSH setting.
